CREATIVE INNOVATION. LDS.PRODUCT

LED PRODUCT LED

GX4.8

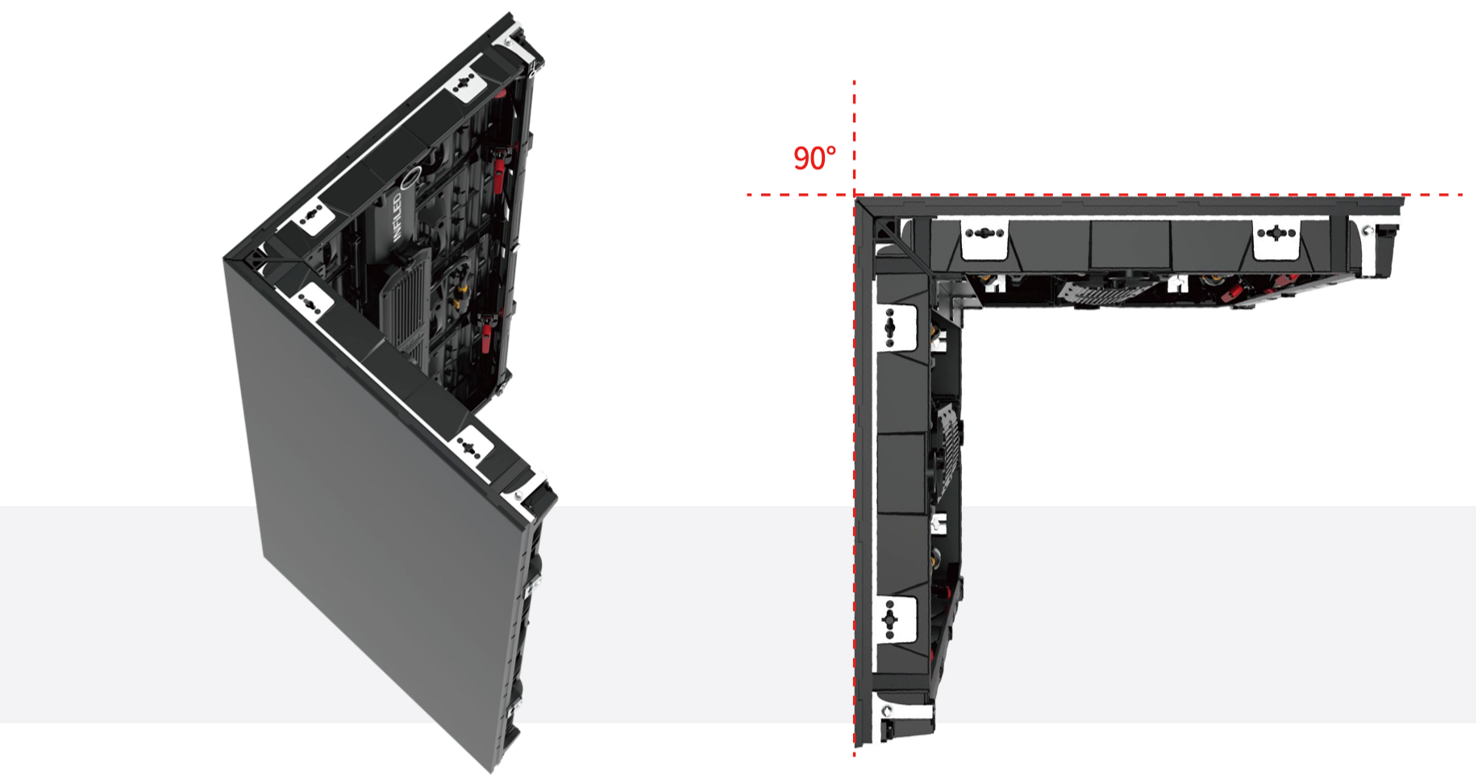

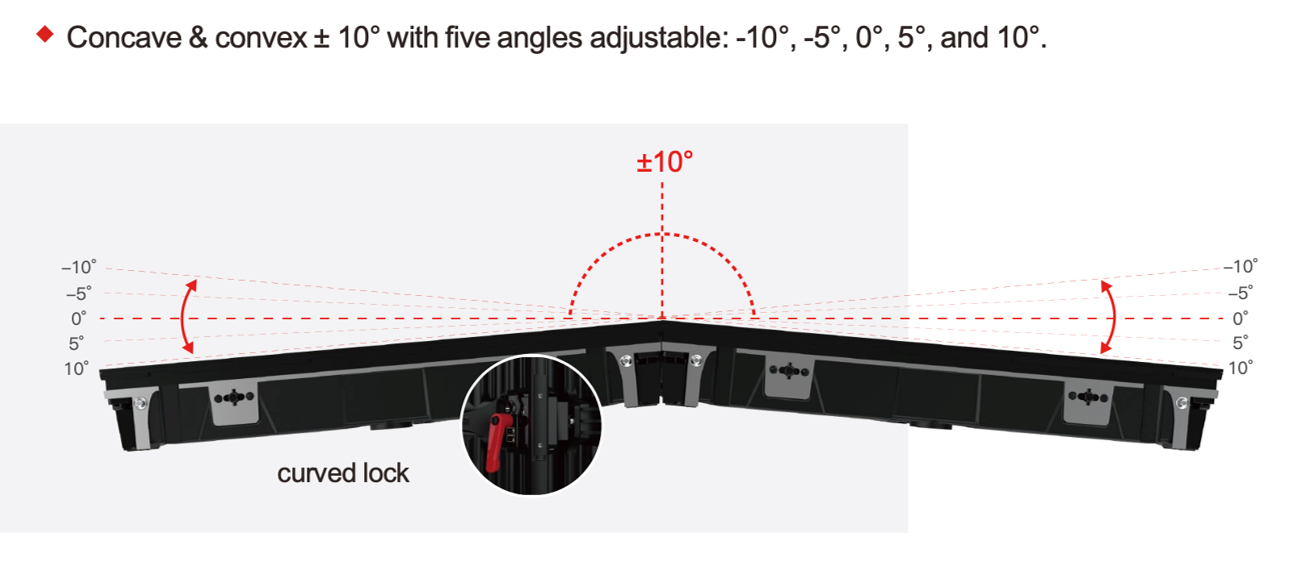

색상 보정된 고해상도 실내형 LED 5개의 각도 조정으로 커브스 스크린 및 90° 직각화면 구현

제품 스펙

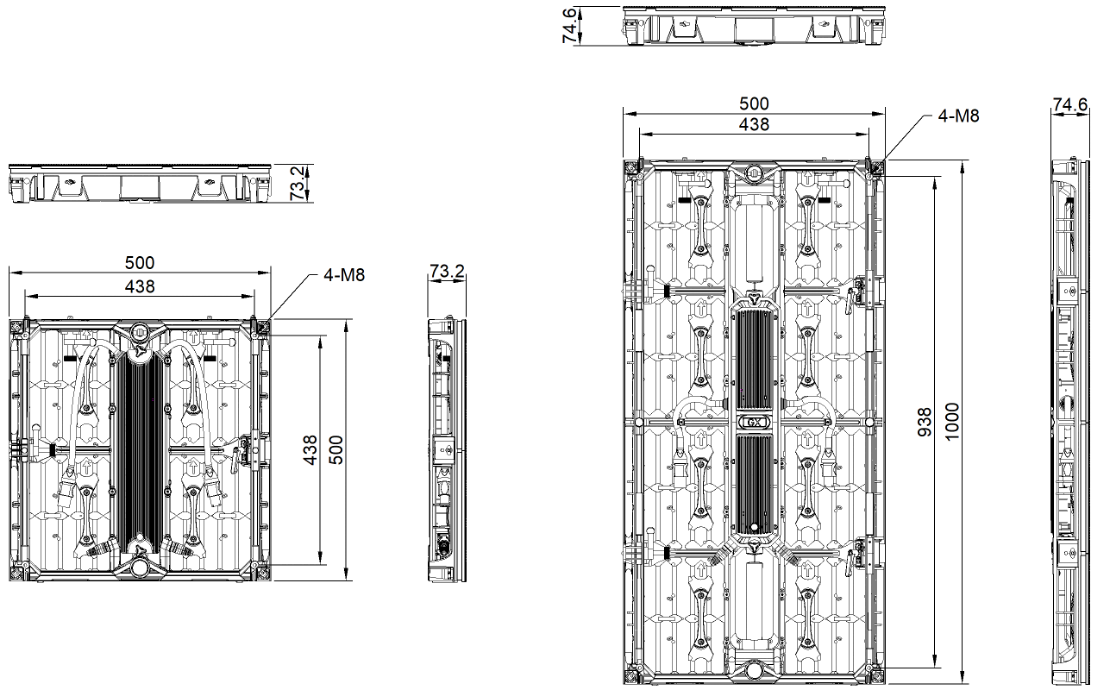

PRODUCT500 x 1000 x 73.2500 x 500 x 73.2
Pixel Pitch4.8mm4.8mm
Pixel matrix per panel104 x 208 pixel104 x 104 pixel
Brightness1000cd /m²1000cd /m²
Cabinet WeightAbout 15kgAbout 8kg
Refresh rate3840Hz3840Hz
Greyscale14~16bit14~16bit
Viewing Angle160 / 160 H / V (°)160 / 160 H / V (°)
AC Operating Voltage220V~240V, 50~60Hz220V~240V, 50~60Hz
Power Maximum Value300 W / Tile150 W / Tile
Power Typical Value100 W / Tile50 W / Tile
Operationg Temperature-10°C~+45°C-10°C~+45°C
Operationg Humidity10%~95% RH10%~95% RH
IP RateIndoorIndoor
