LED PRODUCT LED
제품 스펙

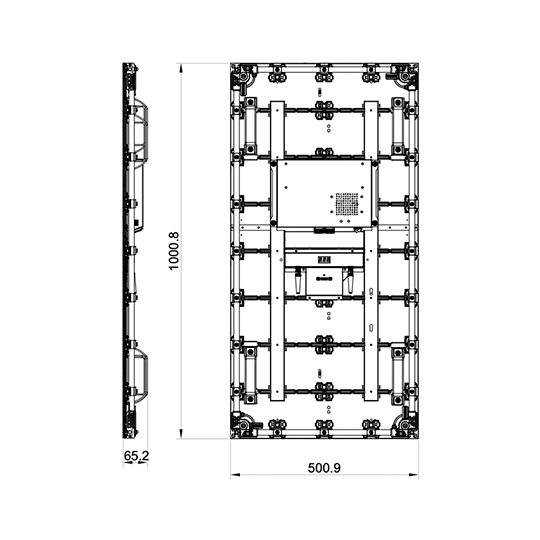

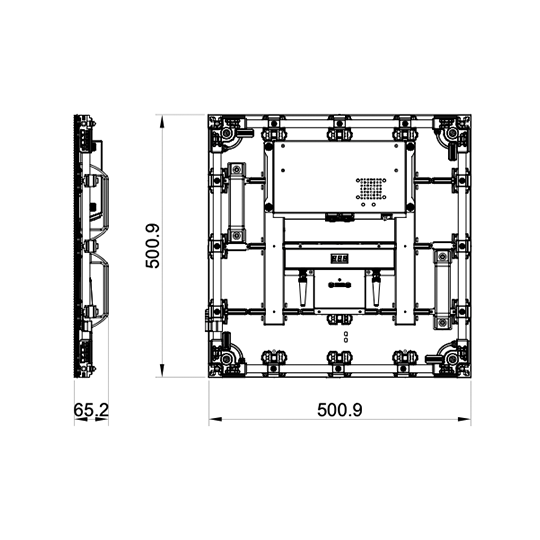

| PRODUCT | 500 x 1000 x 65 | 500 x 500 x 65 |
|---|---|---|
| Pixel Pitch | 4.8mm | 4.8mm |
| Pixel matrix per panel | 104 x 208 pixel | 104 x 104 pixel |
| Brightness | 800~1200cd /m² | 800~1200cd /m² |
| Cabinet Weight | About 8.8kg | About 5.2kg |
| Refresh rate | 3840Hz | 3840Hz |
| Greyscale | 16bit | 16bit |
| Viewing Angle | 160 / 160 H / V (°) | 160 / 160 H / V (°) |
| AC Operating Voltage | 220V~240V, 50~60Hz | 220V~240V, 50~60Hz |
| Power Maximum Value | 250 W / Tile | 150 W / Tile |
| Power Typical Value | 150 W / Tile | 70 W / Tile |
| Operationg Temperature | -10°C~+40°C | -10°C~+40°C |
| Max. Hanging | 8Tile | 16Tile |
| IP Rate | Indoor | Indoor |
해당 제품이 사용된 쇼케이스
