IER 1.5

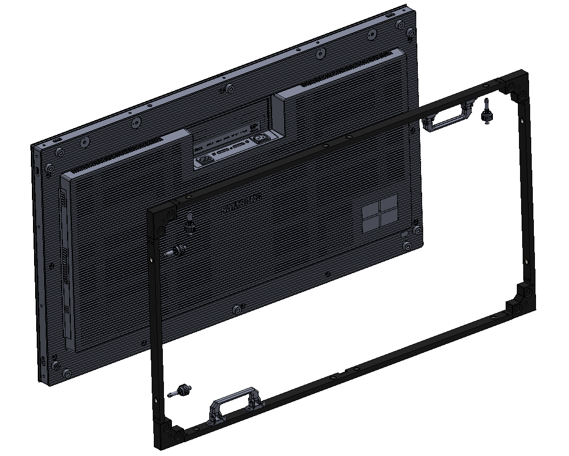

SAMSUNG IER SERIES 1.5mm pitch 선명한 실제 이미지 구현 최상의 영상표출을 위한 삼성만의 LED HDR 기술 LDS가 자체 Frame Modify 하여 쉬운 설치 및 철수

제품 스펙

PRODUCT	960 x 540
Pixel Pitch	1.5mm
Pixel Configuration	1 red, 1 green, 1 blue
Configuration (LxH, per cabinet)	640x360 pixels
Diode Type	Surface Mount Device (SMD)

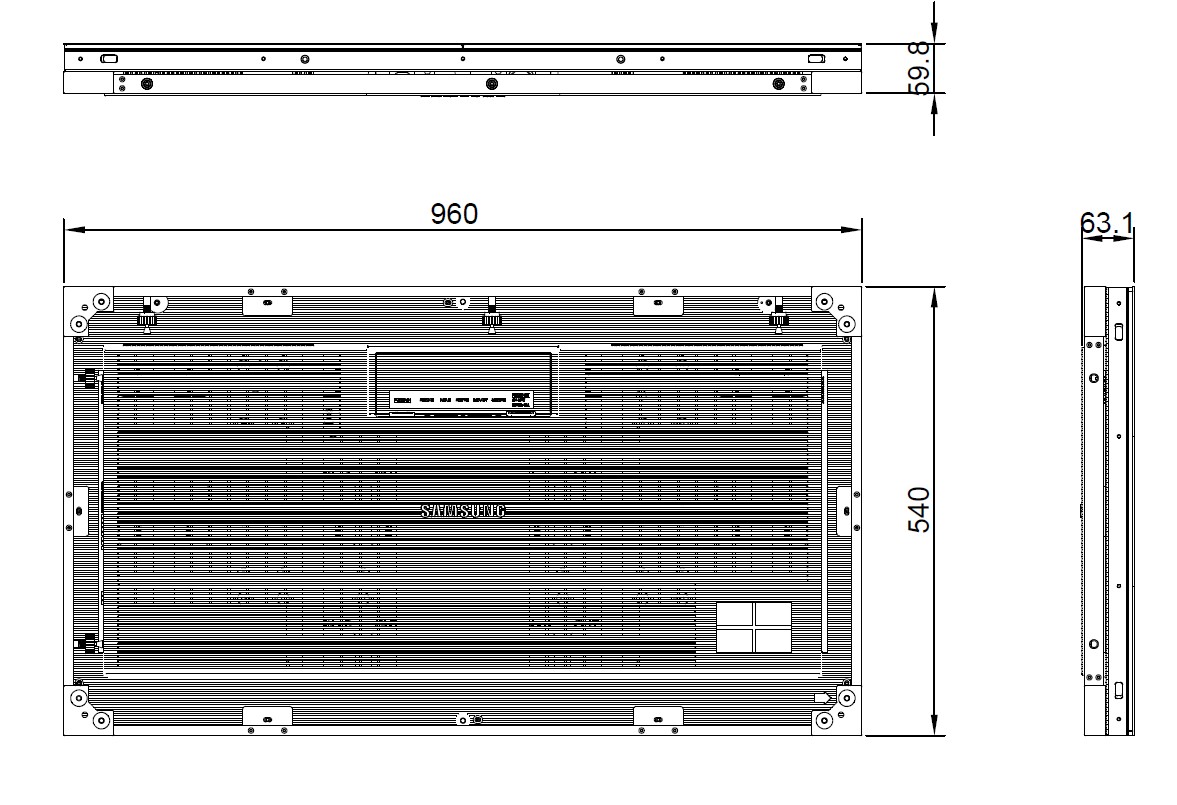

Dimensions (mm, LxHxD, per cabinet)	960 x 540 x 63.1mm
Dimensions (inch, inchxD, per cabinet)	43.3 inch x 3.13 inch
Brightness (Peak/Max)	1200 nit / 600 nit
Viewing Angle - Horizontal	160° (TBD)
Viewing Angle - Vertical	160° (TBD)
Bit Depth	16bit per Color
Color Temperature - Default	6,500K
Color Temperature - Adjustable	2,800~10,000K (use S/BOX)
Video Rate	50/60 Hz
Input Power Range	100~240 VAC, 50/60 Hz
Power Consumption - Max	502 (W/m²) / 260 (W/Cabinet) (TBD)
Power Consumption - Typ	167 (W/m²) / 87 (W/Cabinet) (TBD)
Heat Generation - Max (BTU/SF)	511.5 (TBD)
Refresh Rate	3,840 Hz
Working Temperature/Humidity	0°C~40°C / 10~80%RH
Working Temperature/Humidity	-20°C~45°C / 5~95%RH
IP Rating	IP20
LED Lifetime	100,000 hours
EMC Class A, Safety 60950-1	EMC Class A, Safety 60950-1
Service	Front / Rear
