LED PRODUCT LED

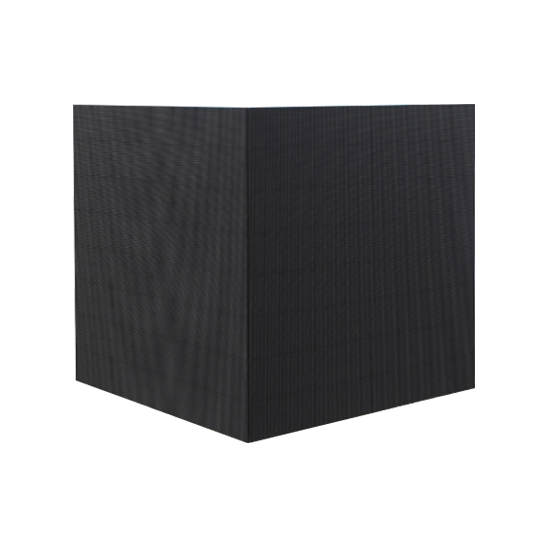

ZS 4.8

다양한 디자인이 실행 가능한 실내/외 겸용 LED

제품 스펙

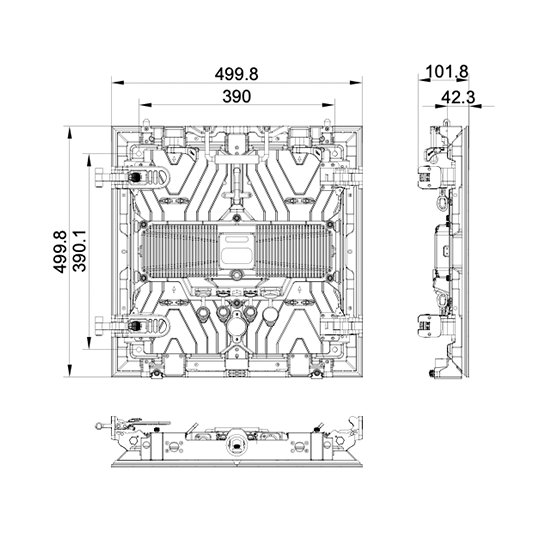

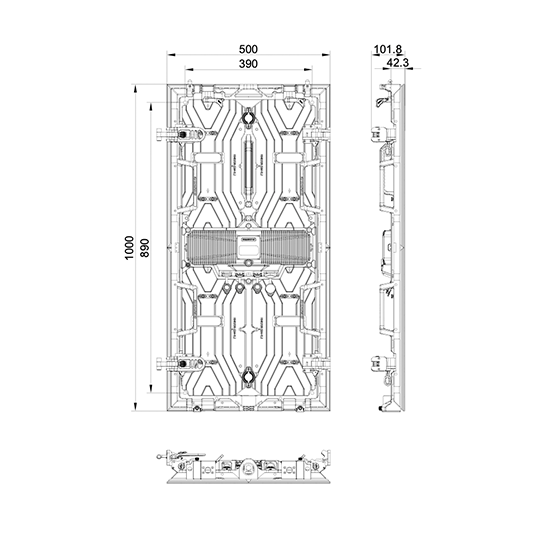

PRODUCT	500 x 1000 x 102	500 x 500 x 102
Pixel Pitch	4.8mm	4.8mm
Pixel matrix per panel	104 x 208 pixel	104 x 104 pixel
Brightness	4500cd /m²	4500cd /m²
Cabinet Weight	About 12.5kg	About 8kg
Refresh rate	3840Hz above	3840Hz above
Greyscale	14~16bit	14~16bit
Viewing Angle	140 / 120 H / V (°)	140 / 120 H / V (°)
AC Operating Voltage	220V~240V, 50~60Hz	220V~240V, 50~60Hz
Power Maximum Value	600 W / Tile	300 W / Tile
Power Typical Value	400 W / Tile	200 W / Tile
Operationg Temperature	-20°C~+40°C	-10°C~+45°C
Operationg Humidity	10%~95% RH	10%~95% RH
IP Rate	Waterproof Front IP65 / Rear IP54	Waterproof Front IP65 / Rear IP54
